157T Smart Differential Pressure Transmitters

  • Description
  • Key Specifications
  • Send Inquiry
  • Documentation

Product Description

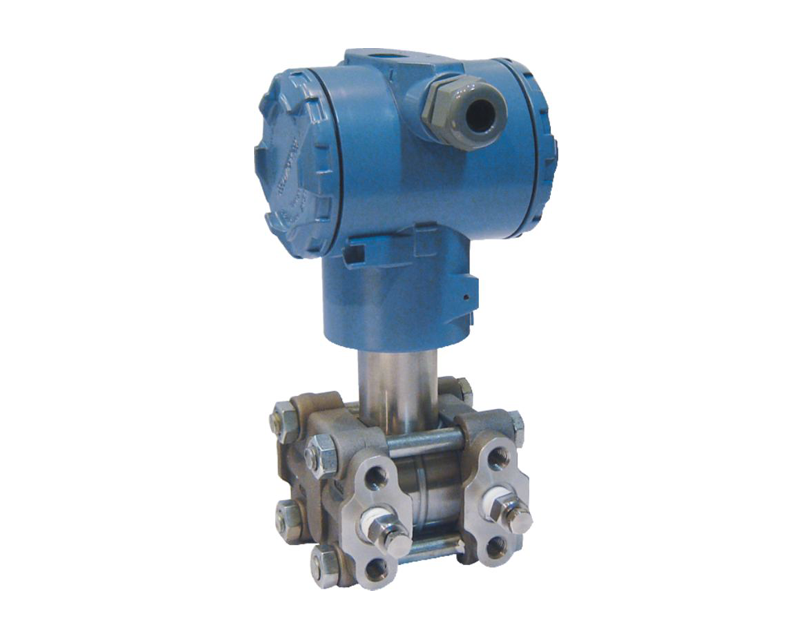

Based on silicon capacitive technology, 157T smart differential pressure transmitters are made from BCM 157M silicon capacitive differential pressure modules. Featuring a full stainless steel housing, 316L stainless steel isolating diaphragm and standard assembly ports, 157T differential pressure transmitters are suitable for rugged industrial applications.

The measuring differential pressure range of 157T transmitters spans from 0~60mbar to 0~50bar. The output signal is 4~20mA with HART protocol. These transmitters are also equipped with a 4½ digits LCD display. 157T transmitters can operate under a static (system or line) pressure of 100 bar with low static pressure effect down to 0.1%fs (fs = full scale). The measuring accuracy of these transmitters is up to 0.1%fs.

Additional Information

Pressure Range

0~60mbar, …, ~5bar

Pressure Type

differential

Static Pressure / Overload Pressure

up to 100bar

Output Signal

4~20mA with HART protocol

Accuracy

up to ÷0.1%fs
